Sensors
High-accuracy acoustic current, tide, and
wave meters with vector-averaged current
speed and direction
(Scroll down for Selection Chart)
• Cost effective 2D point velocity meters for
deep (2ACM-7000) or shallow (2ACM-200) water

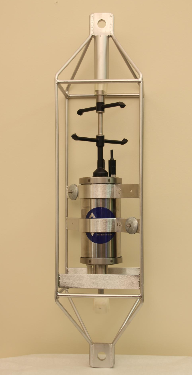

• 3D meters for precise three-axis velocity measurements
with internal compass and tilt correction for
deep (3ACM-7000) or shallow (3ACM-200) water
• Moored Profiler 3D acoustic current meter
(3ACM-SBP-MM)
• High accuracy self-contained Tide Measurement System
with options for real-time telemetry and solar charging
(TIDE SYSTEM)

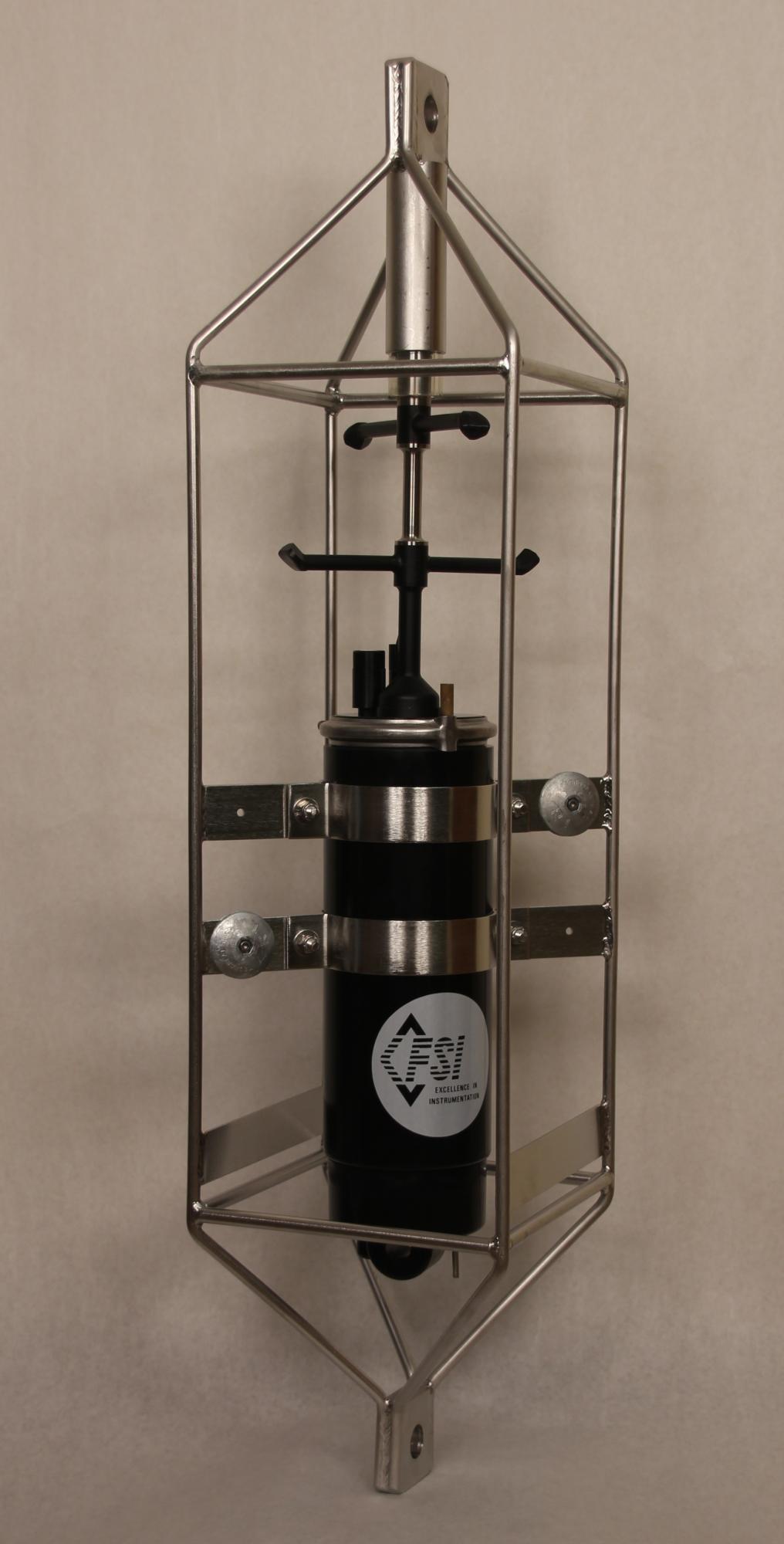

• 3D Wave Height & Direction Meter with built-in ACM; burst
sampling and long-term averaging (3D-Wave)

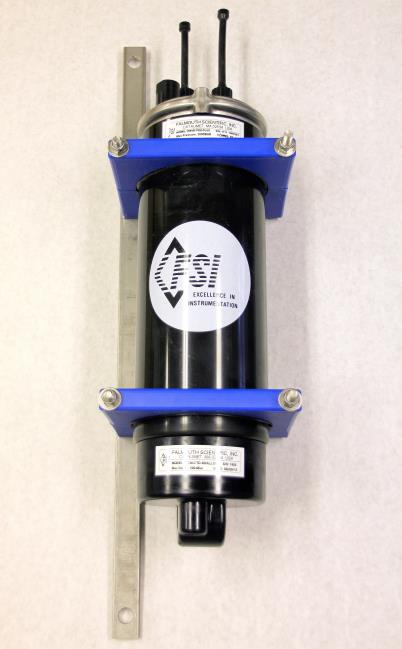

• Economical, highly accurate and stable 1D Wave Height
and Tide Measurement Sensor (1D-WAVE)
Underwater Structural Monitors
• Data logging and real-time remote acquisition of riser and
pipeline displacements, structural stresses, and other
analog data and control signals via bidirectional acoustic
modem (USS-110 and ADL-536)
| |
|
Current, Tide, and Wave Measurement
Selection Chart
| |
2D-ACM |
3D-ACM |
3D-Wave |
1D Wave & Tide |
Tide Recorder |
2-dimensional velocity
(x and y, N and E) |
X |
X |
X |
|
|
3-dimensional velocity
(x, y, z; N, E, up/down) |
|
X |
X |
|
|
| Tide |
|
|
X |
X |
X |
| Wave Height/Spectrum |
|
|
X |
X |
X |
| Wave Direction |
|
|
X |
|
|
Maximum Deployment
Depth (meters) |
200,
7000 |
200,
7000 |
23 |
23 |
20, 100 |
| Conductivity |
Optional |
Optional |
Optional |
Optional |
|
| Temperature |
X |
X |
X |
X |
|
| Depth |
Optional |
Optional |
X |
Optional |
X |
| External Inputs |
2 Optional |
2 Optional |
2 Optional |
2 Optional |
|
|
|
|
